Mainline Computer PLENAFORM® BAFFLE SYSTEM


Products

Showing 1 - 2 of 2« Previous | Page: 1 | Next »

Plenaform® Baffle System-Single Baffle-#PF-2448
Plenaform® Baffle System-Single Baffle-#PF-2448
Air flow baffle system which directs or diverts air flow under raised floors~
Contact Us
Plenaform® Baffle System-Kit of 12-# PF-2448-12
Plenaform® Baffle System-Kit of 12-# PF-2448-12
Kit includes 12 baffles, 88 cable ties, 44 rivets.
$1,014.99
Showing 1 - 2 of 2« Previous | Page: 1 | Next »

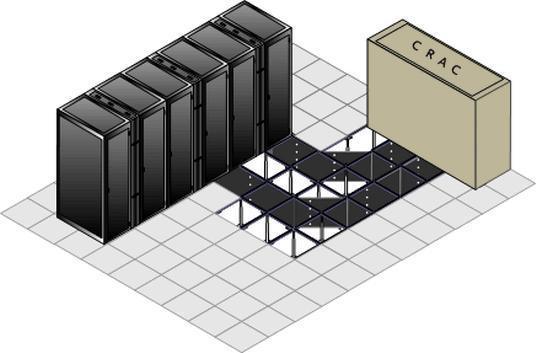

The PlenaForm® Baffle System is an effective raised floor partition system for controlling airflow distribution in raised floor data centers.

SUMMARY:
The key to controlling the airflow distribution is the ability to influence the pressure distribution (or the flow field) in the plenum. For specified (horizontal) floor dimensions and total flow rate, the pressure distribution is governed by the following parameters:

Plenum height
The open area of perforated tiles
Distribution of open area on the floor
Relative positions of CRAC units and perforated tiles
Presence of under-floor blockages

For assistance on your project call Mainline Computer Products toll free at:
(800) 686-5312 or E-mail: Sales@MainlineComputer.com



Mainline Computer Products Team of highly qualified engineers and inside sales professionals provides outstanding pre-sales technical support in the areas of product configuration, specification and pricing.

We work with you to understand your current challenges and future goals, then design custom solutions to help you meet your mission-critical goals. Our vendor-neutral approach gives you the flexibility to select the best IT Product or networking, data center, and communication solutions from a variety of vendors.

Our trained sales staff is well-versed in the latest technology advances and can provide compliant product alternatives as well as assess your current infrastructure to ensure optimal success.

Pricing does not include shipping charges, please contact Sales@MainlineComputer.com or call (800) 686-5312 for a freight quote.

See how we have provided cost-effective solutions for organizations nationwide.
Case Studies.
In addition, our services include site design and infrastructure planning, construction management, power protection and security planning.
For more information Email: Sales@MainlineComputer.com or call (800)686-5312.
