- Product #
- FM9410
- Catalog #
- FM9410
- Weight
- 10.0 lbs.
- Sale Price
- Contact Us
PolarPlex™ Suspended Panel System (SPS)
Quick Connect and Quick Removal Design.
Overview

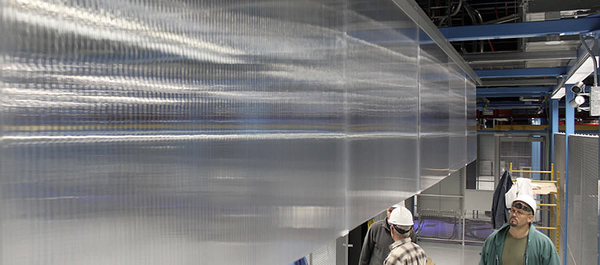

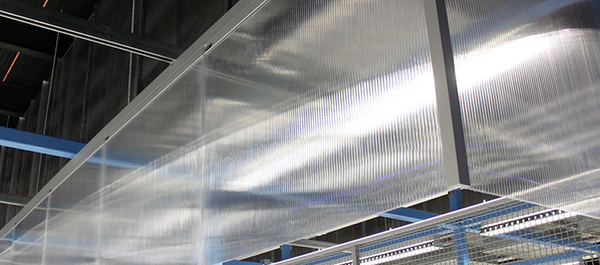

The PolarPlex™ SPS is a ceiling suspended aisle containment solution with an innovative
quick connect and quick removal design. This rigid vertical containment system is ideal for
hot aisle containment and a great alternative to softwall vinyl curtains. It is rack independent
so it is deployed without having to be supported by the server cabinets. The system is patent
pending.
Lightweight
Each 4ʼ x 4ʼ PolarPlex™ Suspended Panel weighs only 10 lbs, making them easy to handle
and install. The system is constructed of anodized aluminum channels and twin-wall
suspended panels. The clear twin-wall, which is rigid for containing air movement, allows
plenty of light to pass into the aisles.

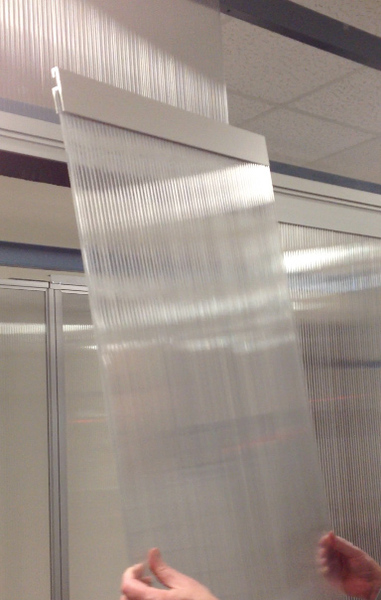

Quick Connect/Quick Removal

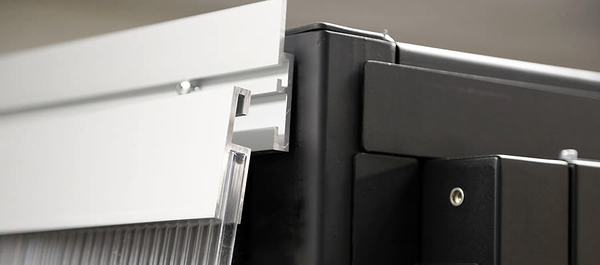

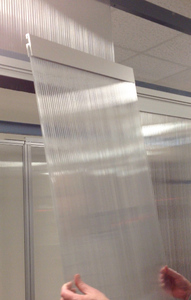

With the SPS special channel design the panels easily hook on for installation and are just
as easily lifted off for removal. No tools are required. This unique feature makes installations
go fast, gives quick access for maintenance, and makes removal for cleaning easy.
For assistance on your project call Mainline Computer Products toll free at:
(800)-686-5312 or E-mail: Sales@MainlineComputer.com
Specifications
Twin-Wall Panels
Material Twin-Wall Polycarbonate
Fire Safety ASTM Class A flame and smoke spread
Color Clear
Thickness 8 mm
Weight 0.30 lbs/square foot
FM4910 Panels
Material CPCV
Fire Safety FM Global 4910
Color Clear with Blue/Gray Tint
Thickness 0.125”
Weight 1.06 lbs/square foot

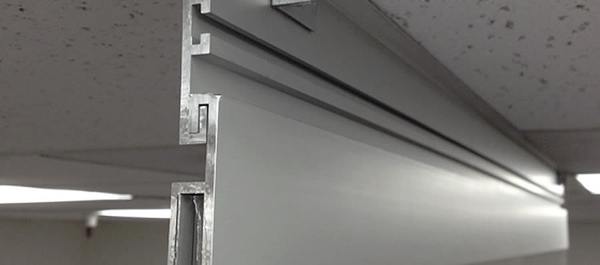

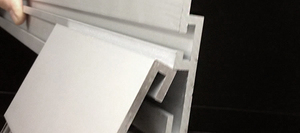

Mounting Channels
Material Extruded anodized aluminum

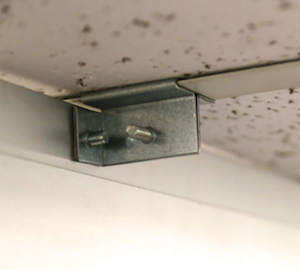

Weight 1.25 lb/linear foot “P-Clip” for T-Bar Mounting
Back
Additional Info

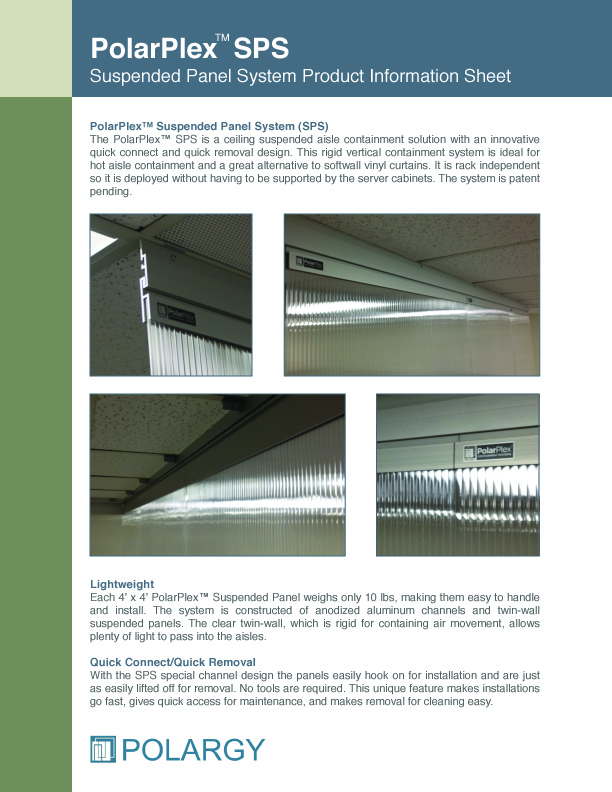

Datasheets:
