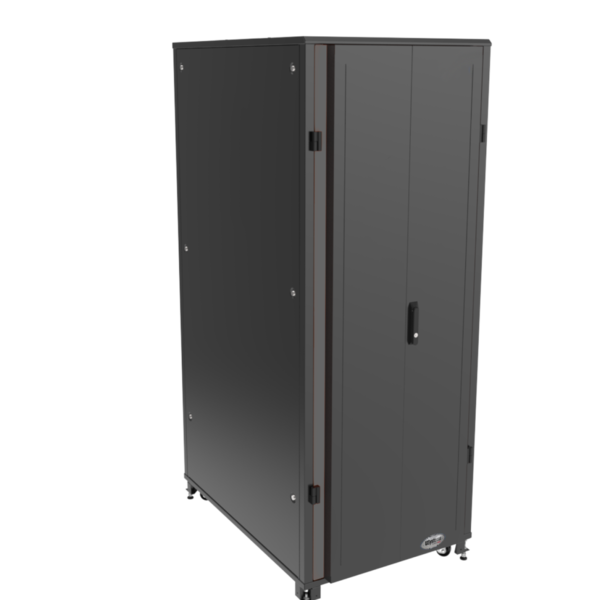

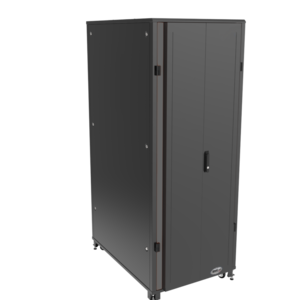

42u Ucoustic Soundproof Server Rack

• 31dB(A) Sound Reduction
• 12KW Heat Dissipation
• 115V


Overview

UCoustic™ with 12kW of Cooling Capacity

Protecting expensive servers and switches or just general IT equipment is of paramount importance and by clever design, the unique cooling system of the UCoustic enables the removal of up to a staggering 12kW of heat load in a 42U height cabinet.

The UCoustic can also deal with removing the exhaust heat rejected into the room from the cabinet via a ducting kit, again making for a pleasant and controlled working environment

The UCoustic™ soundproof rack is made in the UK by USystems, Ltd., an experienced manufacturer in noise reduction across many industries.

This premium range of quiet rack enclosures provides the ultimate combination of noise reduction and air-cooled thermal performance. The Ucoustic range is a viable alternative to a costly dedicated comms room, by allowing the deployment of servers and network equipment directly in the office environment.

This range of quiet rack cabinets will reduce equipment noise to a level below that of background noise in an average office without talking, whilst providing a thermal load capacity of up to 12 kW.

Being thermostatically controlled, the rear fan blowers maintain sufficient airflow throughout the rack cabinet, providing the required level of thermal dissipation, whilst optimizing the level of 'ambient' background noise the cabinet itself generates and minimizing power expenditure.

Also, the spacious internal dimensions provide ample room for orderly cable routing throughout the Ucoustic Server Cabinet, with varied cable entry options to the bottom of the enclosure.

The inclusion of a washable dust filter, promoting extended equipment lifespan and reduced maintenance costs, is optional throughout the Ucoustic range.

Quiet Server Rack Features>

Both Active and Passive UCoustic™ soundproof server cabinets include:

•Key locked front and rear doors, removable for easy access
•Two sets of 19" rack mount, square hole vertical rack rails.
•Cable entry via the base of the cabinet. Includes foam block to prevent noise from escaping
•Casters
•Removable side panels for easy access
• Heavy-duty steel construction
•Delivered fully assembled and ready to go
•Compatible with all leading server brands, including blade servers

Active Ucoustic Cabinets have additional:
•Two built in fans in rear door
•Variable fan speed controller and temperature sensor



Note: Pricing does not include shipping charges, please contact Sales@MainlineComputer.com or call (800) 686-5312 for a freight quote.

Ships fully assembled, start racking!

Cabinet Color: Black



Notice:Fans are 115V and not 220/240V fans. 220/240V power will damage the fans. 220/240V cabinets can be specially ordered. Contact Sales@MainlineComputer.com

Specifications

  • • Passive Wardrobe Front Doors
  • • Active Rear Doors c/w Fan speed controller and temperature sensor
  • • 780w x 1100d Frame
  • • 19” Mounting Angles fitted front and rear
  • • Front and rear infill’s
  • • Cable entry via base of cabinet and cable entry acoustic foam block
  • • Optional dust ingress protection
  • • All cladding is easily removable
  • • Load Bearing Castors
  • • External Dimensions: 80.7"h x 30.7"w x 47.63" ( 2050 x 780 x 1210mm )
  • • Internal Usable: 73.5"h x 19"w x 33.47"d
  • • Maximum Depth- 34.38”
  • • Net Weight- 656.98 lbs
  • . Shipping Weight: 800 lbs.
  • Notice Fans are 115V and not 220/240V fans. 220/240V power will damage the fans. 220/240V cabinets can be special ordered. Contact Sales@MainlineComputer.com

    • Additional Info
